Dry vs. Liquid-Filled Pressure Gauges: What's Right for You?

Key Takeaways:

• Dry gauges are a solid fit for stable, low-vibration environments.

• Liquid-filled gauges improve readability and life in vibration and pulsation.

• Temperature swings and media exposure can drive the right choice.

• Match the gauge to the application, not just the connection size.

Different pressure gauges might look similar and simple on the surface. A needle, a dial, a number. Then a gauge flutters, fogs up, or fails early, and the “simple” part slows down your whole system. Dry and liquid-filled gauges solve different problems and have distinct applications that need to be mapped out; understanding liquid-filled vs. dry pressure gauges prevents wasted replacements.

Why Gauge Selection Actually Matters

A pressure gauge is how you keep tabs on what’s happening inside a hydraulic or pneumatic system; checking settings, confirming output, catching something off before it turns into a real problem. If it is hard to read under vibration, or it drifts after repeated pulsation, it can send you chasing the wrong diagnosis.

Pressure is not steady in many real systems. Pumps pulse, valves shift, and lines see shock loads. Add vibration and temperature swings, and gauge selection becomes important.

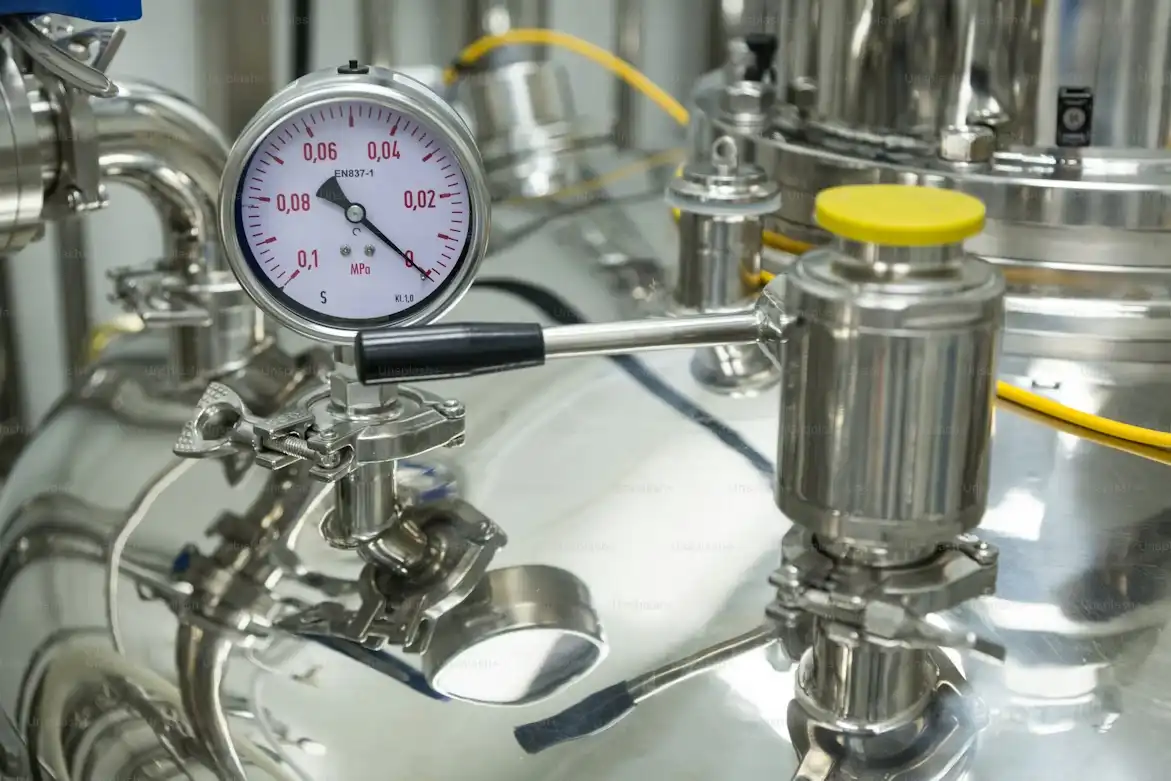

Dry Pressure Gauges: Simple, Clean, and Cost-Effective

When it comes to liquid-filled vs. dry pressure gauges, dry ones aren’t filled with dampening fluid. That simplicity is an advantage in the right place. When mounting is stable and vibration is minimal, a dry gauge is typically easier to live with and often costs less to replace.

Where Dry Pressure Gauges are Different and Excel

Dry gauges tend to perform well when:

• The gauge is mounted on a rigid panel or protected manifold
• Vibration is low, and pressure changes are gradual
• You want a straightforward, no-fluid instrument for routine checks

In controlled indoor environments, dry gauges can stay clear and readable for a long time.

Common Limitations of Dry Gauges

Comparing liquid-filled vs. dry pressure gauges, dry models struggle when the system is rough on instruments. Under vibration or pulsation, you can see pointer flutter. Over time, constant movement can accelerate internal wear. Humidity and outdoor exposure don’t help, either; moisture gets inside and fogs the dial.

Liquid-Filled Gauges: What is a Liquid-Filled Pressure Gauge?

Liquid-filled gauges come filled with glycerin or silicone oil. The fluid slows the needle down, cushions the internals, and generally keeps things readable in conditions that would wear out a dry gauge faster than you’d like.

What the Fill Liquid Does

In many installations, the fill separates liquid-filled vs. dry pressure gauges:

• Dampening pointer flutter
• Better readability when pressure pulses are present
• Reduced internal wear from constant movement
• Reduced fogging and moisture issues in changing conditions

If you have ever tried to read a needle bouncing across the dial, this is why liquid-filled gauges exist.

Tradeoffs to Keep in Mind

Liquid-filled gauges are not a universal upgrade. Viscosity changes with temperature, and different liquid-filled pressure gauges can respond differently in cold conditions. Cost is often higher than a comparable dry gauge, and some applications prefer dry gauges for simplicity.

Liquid-Filled vs. Dry Pressure Gauges: Head-to-Head

Both types can work. The differences show up in day-to-day use.

Durability Under Vibration and Pulsation

If the system sees vibration or rapid pressure changes, liquid-filled gauges often have the advantage. Dampening improves readability and can reduce the stress that constant pointer motion places on internal components.

Readability and Operator Confidence

Readability is not a minor detail. In stable conditions, both styles read well. In vibration, liquid-filled gauges typically win because the needle settles instead of dancing.

Temperature Range and Response

Temperature is where the choice can get nuanced: Dry gauges generally hold steady. There’s a split here between liquid-filled and dry pressure gauges; liquid may react more slowly in cold environments as the fill thickens (cold weather causes many problems in industrial work). Outdoor installs and unheated bays see real temperature swings; worth factoring in when you’re considering different pressure gauge models.

Maintenance and Long-Term Ownership

Neither type eliminates the need for good gauge habits:

• Do not permanently run a gauge near the top of its range.
• Keep gauges away from direct mechanical impact where possible.
• When readings wander, or the dial gets hard to read, swap it out (don’t ever second-guess it).

In rough service, many teams find that liquid-filled pressure gauges last longer than dry ones. In stable service, dry gauges can be the more efficient choice.

Picking the Right Gauge for Your Setup

Picking the right gauge is usually a short checklist:

Step 1: Identify the Pressure Behavior, Not Just the Pressure Range

Pay attention to what the system actually does during operation – not just the max pressure rating. Smooth and steady? Pulsing? Spiking every time a valve shifts or a pump cycles? A needle that never sits still needs a gauge built for that.

Step 2: Look at Where the Gauge Lives

Consider the mounting location and what it faces; liquid-filled vs. dry pressure gauges differ here:

• High vibration at the pump or on mobile equipment
• Outdoor exposure, humidity, washdowns, or temperature swings
• Tight spaces where the dial is read at an angle

The environment is often the deciding factor between dry and liquid-filled.

Step 3: Consider How Different Pressure Gauges Gets Used

Is it a spot-check gauge someone glances at once in a while, or is it the instrument an operator watches all shift? When people need to read it quickly and trust what they see, vibration damping and readability take on greater importance.

Step 4: Verify Fitment and Accessories

Connection type, mounting orientation, and accessories when it comes to liquid-filled vs. dry pressure gauges: confirm it lines up with your system before ordering. If the gauge sits in a vulnerable spot, added protection can extend its life, regardless of which style you choose.

Final Thoughts

Both dry and liquid-filled pressure gauges have their place. Dry gauges keep things simple in stable environments. Liquid-filled gauges pull ahead when conditions get rough (vibration, pulsation, temperature swings), the kind of stuff that makes needles bounce and dials fog up.

G&G Hydraulics Corporation stocks both styles and can walk you through the trade-offs for your specific application. Compare liquid-filled vs. dry pressure gauges in the catalog or call the team directly – they’ll help you land on the right fit, so you can hit “Add to Cart”.
