100915 Hytec Valves Pilot Operated Check UPC #662536286084

100915 Hytec Valves Pilot Operated Check UPC #662536286084

Be the first to review this product

Intermittent stocking item, call for specific ship date. Please note, we go into production on some items as soon as we receive your order. It is highly recommended that you place your order as soon as possible.


Regular Price: $540.00

Price $459.00

100915 Hytec Valves Pilot Operated Check UPC #662536286084 is available for purchase in increments of 1

Quick Overview

Part #100915 Hytec Valves Pilot Operated Check, 5,000 psi maximum,10 micron (25 micron absolute) filtration level.
OR


Part #100915 Hytec Valves Pilot Operated Check



Hytec’s pilot operated check valve offers a unique poppet seal design making them ideal for pallet applications or other specialized control circuits where zero leakage is essential. They can be used in any application where pressure must be maintained in a portion of a circuit until a separate pilot signal opens the valve and allows free flow in the reverse direction.

The pilot pressure required to release the valves is approximately one third of the pressure being released. The pilot piston is sealed to prevent pilot flow through the valve.

These valves are used with Hytec’s Automatic Pallet Coupling System and double-acting manual pallet valve. The replaceable filter elements protect the check valve and your other system components from contamination. No disassembly of circuit plumbing is required to service the filters or the check valve cartridge. An additional filter is recommended for protection of the return side of double-acting clamping circuits.


Features:



  • Replaceable, cartridge design valve
  • Filters in all three ports protect the check valve and downstream components
  • Filters are replaceable without disassembly of plumbing
  • SAE O-rings ports
  • 10 micron (25 micron absolute) filtration level
  • Specially reinforced filter elements resist fatigue from pressure spikes
  • 5,000 psi maximum
  • No. 100915 replaces and directly interchanges with No. 100856





Order No. Maximum Flow
(GPM)
System/Pilot
Pressure Ratio
100915 5 3:1

Order
No.
Dimensions (In Inches)
A
Pilot Por
B
Inlet Port
C
Outlet Port
D E F G Q
100915 7/16-20 UNF
SAE-4
9/16-18 UNF
SAE-6
9/16-18 UNF
SAE-6
1.500 0.781 1.125 1.125 0.050

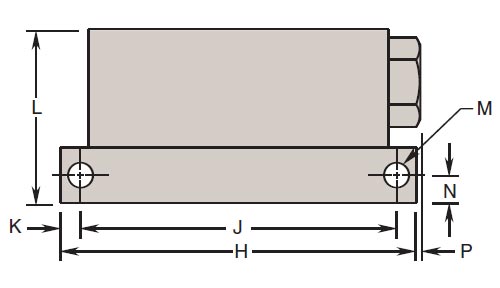

Order
No.
H J K L M
Dia.
N P
100915 4.000 3.562 0.219 1.955 0.281 0.312 0.050


Product Availability Intermittent stocking item, call for specific ship date. Please note, we go into production on some items as soon as we receive your order. It is highly recommended that you place your order as soon as possible.
