100877 Hytec Air Advance Work Supports 1,300 lbs. Capacity UPC #662536238113.jpg

100877 Hytec Air Advance Work Supports 1,300 lbs. Capacity UPC #662536238113

Be the first to review this product

Regular Price: $630.00

Price $535.50

100877 Hytec Air Advance Work Supports 1,300 lbs. Capacity UPC #662536238113 is available for purchase in increments of 1

Quick Overview

Part #100877 Hytec Air Advance Work Supports 1,300 lbs. Capacity at 5,000 psi maximum, Fully corrosion resistant construction, Manifold mount or conventional base mounting,Manifold mount or conventional base mounting.
OR


Part #100877 Hytec Air Advance Work Supports 1,300 lbs. Capacity



Hytec’s air advance work supports have a spring return plunger which uses air pressure to extend it to contact the workpiece. To support any externally applied loads, the sleeve surrounding the plunger grips the plunger and holds it in place.

Air advance work supports allow the plunger to be retracted out of the way during workpiece load/unload operations. Applying air pressure to the work support gently raises the plunger until it contacts the workpiece. Adjusting the air pressure will vary the plunger contact force. The air pressure within the work support also serves to keep contaminants out.

The No. 100876’s threaded body may be compactly manifold mounted in your fixture or choose the No. 100877 which includes the 100876 work support and a mounting base for installation on a flat surface for conventionally plumbed circuits. Both feature fully corrosion resistant construction.

Extremely close manufacturing tolerances hold the plunger perpendicular to the workpiece and eliminates inaccuracies due to plunger movement during lock-up. After lock-up, the plunger is absolutely rigid and limits elastic deflection to .00007" per 100 lbs. of load. For base only, order number 500036.




Features:

  • 1,300 lbs. capacity @ 5,000 psi maximum
  • Fully corrosion resistant construction
  • Manifold mount or conventional base mounting
  • 1,000 psi minimum recommended pressure



Order NO. Cap. *
(lbs.)
Oil Cap.
(cu. in.)
Advance
System
Mounting
Configuration
100877

1,300 0.01 Air Base
* Based on 5,000 psi max. operating pressure. (Optional Jam Nut)





Order
No.
Dimensions (In Inches)
M N P Q
Thread Size

R
Dia.
100877 1.000 0.700 0.385 7/16 - 20 UNF SAE-4 1.688
NOTE: † 1.768 dia. min. clearance required.



Order
No.
Dimensions (In Inches)
Operating Range Z
Thread
Size
AA BB
Port
Angle
CC
Port
Angle
X
Retracted
Y
Advanced
100877 3.162 3.474 1/8 NPTF 0.330





Order
No.
Dimensions (In Inches)
S T U
Dia.
V W
100877 2.562 1.968 0.281 1.188

1.750





Order
No.

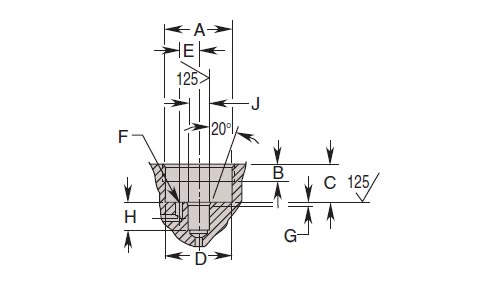

MANIFOLD MOUNT DETAIL
Cavity Dimensions Fluid Passage Dimensions
Air Passage Dimensions
A
Thread
Size
B
Min.
Thread
C D
Dia.
E F
Dia.
G H J
Dia.
100877 1 1/4 - 16 UN 0.300 0.665
0.675
1.182
1.196
0.343 0.121
0.135
0.060 0.380
0.400
0.375
0.377
NOTE: † Connector bushing supplied but not shown.



AIR ADVANCE WORK SUPPORT
Order
No.
Approximate Forces Required
To Depress Plunger (lbs.)
* Air Pressure (psi) Force (lbs.)
100877 20 ** 3.7
NOTE:
* Min. air pressure. 15 psi, maximum air pressure 30 psi.
** Minor air leakage may occur at or above this pressure.
