Part #100937 Hytec Center Hole Cylinders
Our center-hole cylinders can be used as single or double-acting workholding devices. Mounting can be done in any of several ways: use the thru-holes for mounting from the top, use the tapped holes in the bottom for mounting from underneath, or secure with a single stud or rod through the center. The pistons are threaded to accept the optional crowned threaded inserts, used when the cylinder contacts the work directly.
Features:
- Single or double-acting
- Multiple mounting options
- Heavy-duty return spring
- Converts manual clamping to hydraulics
- Plated, threaded piston rods
SAE Ports | Specifications | |||
Order No. | Force * (lbs.) |
Stroke (in.) |
Extend and Retract | |
Eff. Area (sq. in.) |
Oil Cap. (cu. in.) |
|||
100937 | 10.735 | 1.000 | 2.147 | 2.147 |
NOTE: * Based on 5,000 psi max. operating pressure. ** Extend Only |

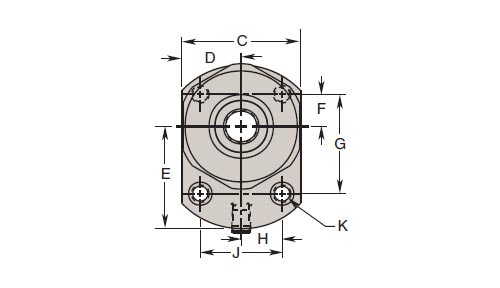

Order No. | Dimensions (in Inches) | |||||||
SAE Ports | C | D | E | F | G | H | J | K |
100937 | 2.550 | 1.275 | 2.188 | 0.688 | 2.125 | 0.875 | 1.750 | 0.322 |

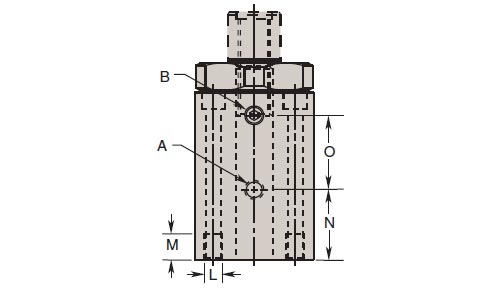

Order No. | Dimensions (in Inches) | |||||
SAE Ports | A Adv. Port Thread Size |
B Ret. Port Thread Size |
L Thd Size |
M Thd Depth |
N | O |
100937 | 7/16-20 UNF SAE-4 |
7/16-20 UNF SAE-4 |
3/8-16 UNC | 0.562 | 1.500 | 1.594 |
Product Availability | Intermittent stocking item, call for specific ship date. Please note, we go into production on some items as soon as we receive your order. It is highly recommended that you place your order as soon as possible. |
---|---|
Manufacturer | SPX Hytec |
