20-4000A300 SC Hydraulics Pressure Release Valve New Part PRC-300-N-HF9
PRESSURES UP TO 30,000-PSI
COMPATIBLE WITH MOST FLUIDS
AIR ACTUATED - NO ELECTRICITY REQUIRED
NORMALLY OPENED OR NORMALLY CLOSED POSITIONS AVAILABLE
SC Pressure Release Valves are available in normally open and normally closed configurations. All of the valves are air actuated and are compatible with most fluids including water and synthetic compounds. Seals are Buna-N as standard (-N). Substitute "–V" for Viton® seals or "–E" for EPR.
Typically, pressure release valves are used to release pressure on single acting cylinders, hydrostatic test applications, or for providing a safety relief in a circuit.
PILOT OPERATED PRESSURE RELEASE VALVE | |||||||||||
Model No. | Normal Condition |
Pilot Ratio for Actuation |
Max Op Pressure (psi) |
Connection Ports | Cracking Press. Reverse Flow (psi) |
Pilot Press.at Max. (psi) |

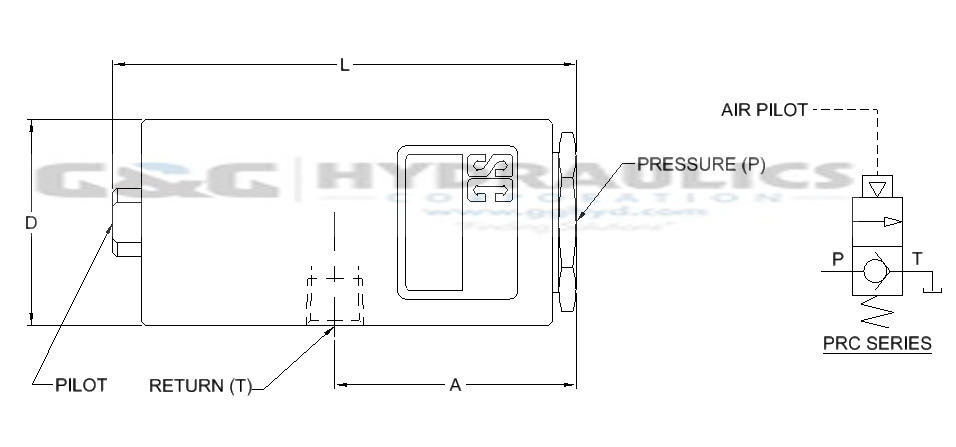

"L" Dim. Inch |
"A" Dim. Inch |
"D" Dim. Inch |
||
Pressure | Return | Pilot | |||||||||
PRC-300-N-HF9 | Closed | 850:01:00 | 30,000 | 1-1/8-12 HF9* |
3/8" NPT | 1/4" NPT | 5 | 35 | 6.54 | 3.94 | 3 |
***Please Note: Item Photos above are for General Reference and may not always be exact. Please see the product description and quick overview section for complete listing of item details and any additional components and specifications***
UPC | 20-4000A300 |
---|---|
Product Availability | Typically Ships in 24-48 Hours, FOB: Point Of Origin (May Be Delayed If In Production) |
Manufacturer | SC Hydraulic |
-
