100867 Hytec Cartridge Pull Cylinders Compact Design UPC #662536223805

100867 Hytec Cartridge Pull Cylinders - Compact Design UPC #662536223805

Be the first to review this product

Intermittent stocking item, call for specific ship date. Please note, we go into production on some items as soon as we receive your order. It is highly recommended that you place your order as soon as possible.


Regular Price: $196.00

Price $166.60

100867 Hytec Cartridge Pull Cylinders - Compact Design UPC #662536223805 is available for purchase in increments of 1

Quick Overview

Part #100867 Hytec Cartridge Pull Cylinders - Compact Design, Manifold mounting eliminates tubing, Threaded, plated piston rod, Power-Tech™ treated body for long wear and corrosion resistance, 5,000 psi maximum pressure rate, Rod wiper to exclude contaminants, Single-Acting.
OR


Part #100867 Hytec Cartridge Pull Cylinders - Compact Design



These "Pull" cylinders retract when hydraulically pressurized. They were created to permit the user to design a cylinder into a fixture while maintaining the replaceability and long life of a heat treated, corrosion resistant cylinder body. Typical applications of these cylinders include installation behind fixture plates or buried in tombstones where they can supply clamping force without taking up valuable fixture space.

These pull cylinders were designed for cartridge mounting in a cavity supplied by the user. The required cavity is simply a cylindrical bore with a properly deburred pressure port intersecting it, providing the hydraulic fluid connection. They are for single acting systems only where the force for cylinder return (extension) is supplied manually or through a spring designed into the application by the user. A return spring that can be built into the application is available. (No. 251549 Order Separately)



Features:

  • Compact design
  • Manifold mounting eliminates tubing
  • Threaded, plated piston rod
  • Power-Tech™ treated body for long wear and corrosion resistance
  • 5,000 psi maximum pressure rate
  • Rod wiper to exclude contaminants
  • Single-Acting



Order No. Force *
(lbs.)
Stroke
(in.)
Eff. Area
(sq. in.)
Oil Cap.
(cu. in.)
100867 1,740 0.312 0.108 0.108
NOTE: *Based on 5,000 psi maximum operating pressure.




Order No.
Dimensions (in Inches)

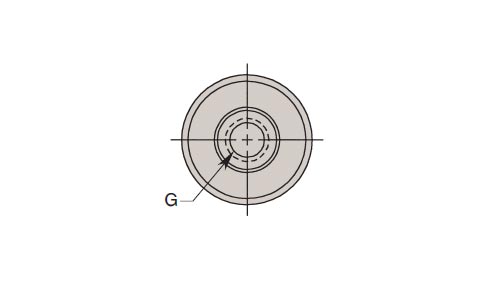

G
Thread
Size Depth
100867 3/8-16 UNC 0.500






Order No.
Dimensions (in Inches)
A B C D E F
100867 1.902 1.500 1.500 - 0.750 1.500
