100141 Hytec Spring Advance Work Supports- 7,500 lbs. Capacity UPC #662536005296

100141 Hytec Spring Advance Work Supports- 7,500 lbs. Capacity UPC #662536005296

Be the first to review this product

Regular Price: $575.00

Price $488.75

100141 Hytec Spring Advance Work Supports- 7,500 lbs. Capacity UPC #662536005296 is available for purchase in increments of 1

Quick Overview

Part #100141 Hytec Spring Advance Work Supports- 7,500 lbs. Capacity, 5,000 maximum PSI Required, Single-acting, Manifold or conventionally mounted styles, Sealed against contamination.
OR


Part #100141 Hytec Spring Advance Work Supports- 7,500 lbs. Capacity



Work supports provide the stability that prevents deflection and vibration of the workpiece during machining. Automatically adjustable to varying sizes or positions of the workpieces, they are also usable as adjustable rest pads under clamps.

These 7,500 lb. work supports are available in four different spring advanced models with either conventional or manifold mounting. All use plunger seals to protect against contamination. The spring advance models use Hytec’s diaphragm breather system.

The block style design requires only a flat surface for mounting rather than the large threaded hole necessary with threaded body designs.

Features:

  •     Spring advance models
  •     7,500 lb. rated capacity at 5,000 psi maximum
  •     Single-acting
  •     Manifold or conventionally mounted styles
  •     Sealed against contamination



Order NO. Cap. *
(lbs.)
Oil Cap.
(cu. in.)
Advance
System
Mounting
Configuration
100141 7,500 0.25 Spring Manifold
* Based on 5,000 psi maximum operating pressure






Order
No.

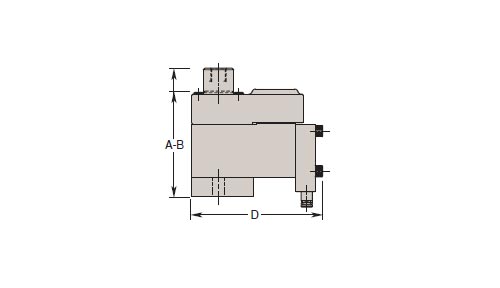

Dimensions (In Inches)
A
Retract
Operating
Range
B
Advance
Operating
Range
D
100141 3.435 4.185 4.250






Order
No.
Dimensions (In Inches)
C E

G

Dia.

100141 3.500 3.875 1.000






Order
No.
Dimensions (In Inches)
F H J K M N

Size

Depth
100141 1.625    2.000   0.875 1.250 1/2-13 UNC 0.875 1.750






Order
No.
Dimensions (In Inches)

O

Mounting

P

Mounting

100141 1.250 2.878










Order
No.
Dimensions (In Inches)

X

Y



Thread Size

Dia
100141 - - -








Order
No.
SPRING ADVANCE WORK SUPPORT
Approximate Forces Required
To Depress Plunger (lbs.)

Fully
Extended



Extended
50%

Fully
Depressed
100141 5.0 7.0 9.0
