110134 Hytec Work Supports, Spring, 1,300 lbs. Capacity UPC #662536391818.jpg

110134 Hytec Work Supports, Spring, 1,300 lbs. Capacity UPC #662536391818

Be the first to review this product

Regular Price: $607.00

Price $515.95

110134 Hytec Work Supports, Spring, 1,300 lbs. Capacity UPC #662536391818 is available for purchase in increments of 1

Quick Overview

Part #110134 Work Supports, Spring, 1,300 lbs. Capacity, Filtered breather/rest button, Fully corrosion resistant construction.
OR


Part #110134 Work Supports, Spring, 1,300 lbs. Capacity



Hytec’s spring advance work supports have a spring loaded plunger which contacts the workpiece as it is loaded into the fixture. The spring keeps the plunger in contact with the workpiece, allowing for variations between workpieces. To support any externally supplied loads, the sleeve surrounding the poppet grips the plunger and holds it in place.

The 100874 and 110124’s threaded body may be compactly manifold mounted in your fixture or choose the 100875 or metric version 110134 which includes the 100874 work support and a mounting base for installation on a flat surface for conventionally plumbed circuits. Both feature fully corrosion resistant construction.

Extremely close manufacturing tolerances hold the plunger perpendicular to the workpiece and eliminates inaccuracies due to plunger movement during lock-up. After lock-up, the plunger is absolutely rigid and limits elastic deflection to 0.00007" per 100 lbs. of load. For base only, order number 500035 for conventional mounting, and 421727 for manifold mounting.


Features:

  • 1,300 lbs. capacity @ 5,000 psi maximum
  • Fully corrosion resistant construction
  • Manifold mount or conventional base mounting
  • Filtered breather/rest button
  • 1,000 psi minimum recommended pressure



Order
No.
Cap. *
(lbs.)
Oil Cap.
(cu. in.)
Advance
System
Mounting
Configuration
110134 1,300 0.01 Spring Base Conventional
* Based on 5,000 psi maximum operating pressure

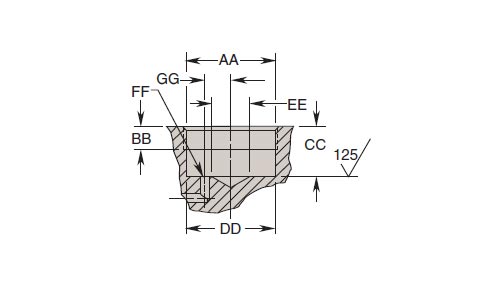

Order
No.
Mounting Dimensions (In Inches)
AA
Thread
Size
BB
Min.
Thread
CC DD
Dia.
EE
Drill Point
Dia. Max.
FF
Dia.
GG
Max.
110134 - - - - - - -



Order
No.
Mounting Dimensions (In Inches)
HH JJ KK
Thread
Size
LL MM NN
Pressure Port
Dia. Max.
110134 1.968 1.188 1/4 - 20 UNC 1.456 0.594 0.126 †††
NOTE:
††† Surface finish to be 63. Finish of 125 acceptable with concentric tool marks only.
Finish area to be 0.438 dia. min. centered on 0.126 dia. port hole.
See operating instructions for additional details.



FLUID ADVANCE WORK SUPPORT
Order
No.
Approximate Forces Required
To Depress Plunger (lbs.)
Fully
Extended
Fully
Depressed
110134 2.3 2.9
