Hytec Swing/Pull Clamp, Threaded Body, 750 lb [100949]
Features:
- Full thread provides wide range of precise height adjustment
- Simple installation/removal
- “Live Roller” design provides industry’s most reliable swing/pull mechanism
- Piston/Cam combination provides solid path for clamping action
- Typical ball and groove mechanism has higher potential for clogging and for damage from mis-aligned work pieces
- Available in single and double acting versions
- Special rod wiper seal protects internal clamp components
- Unique drainage system channels contaminants away from clamp
- Corrosion resistant construction
- Heat treated, chrome plated piston rod
- Unique “Live Roller™” swing mechanism for increased service life
- Power-Tech™ treated body and hardened cam for long wear and corrosion resistance
- Single and double acting models are dimensionally interchangeable
- Straight pull cap. 950 lbs. at 5,000 psi maximum (without arms).
| Order No. | Oper. | Swing Direction | Force * (lbs.) |
Eff. Area (sq. in.) |
Oil Cap. (cu. in.) |
||
| Clamp | Unclamp | Clamp | Unclamp | ||||
| 100949 | Single-Acting | RH (Clockwise) | 750 | 0.195 | 0.441 | 0.160 | 0.360 |
| * With 1.25" arm at 5,000 psi maximum operating pressure. | |||||||

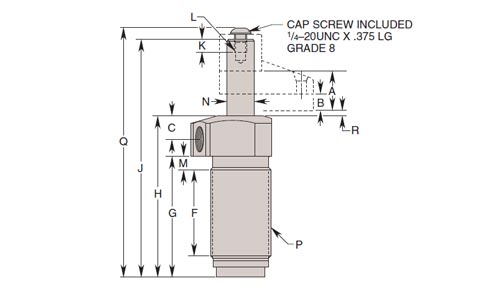

| Order No | Dimensions (in Inches) | |||||||||||||
| A Total Stroke |
B Clamping Stroke |
C Dia. |
F | G | H | J |
K Thread Min. |
L Thread Size |
M | N ‡ Dia |
P Thread Size |
Q | R | |
| 100949 | 0.818 | 0.345 | 0.492 | 1.770 | 2.497 | 3.327 | 4.912 | 0.275 | 1/4-20 UNC | 0.283 | 0.560 | 1 1/4-12 UN | 5.139 | 0.108 |
| † Do not pressurize - single-acting only. | ||||||||||||||
