100849 Hytec Swing/Pull Clamps -Threaded Body Style -2400 lbs - Bolt UPC#662536141185
Part #100849 Hytec Swing/Pull Clamps -Threaded Body Style -2400 lbs - Bolt. Straight pull capacity 3,144 lbs at 5,000 psi maximum, Bolt Included.
Special Price
$998.05
was
$1,121.40
SKU
100849
100849 Hytec Swing/Pull Clamps -Threaded Body Style -2400 lbs - Bolt UPC#662536141185 is available to buy in increments of 1
Part #100849 Hytec Swing/Pull Clamps -Threaded Body Style -2400 lbs - Bolt
Features:
- Full thread provides wide range of precise height adjustment
- Simple installation/removal
- “Live Roller” design provides industry’s most reliable swing/pull mechanism
- Piston/Cam combination provides solid path for clamping action
- Typical ball and groove mechanism has higher potential for clogging and for damage from mis-aligned work pieces
- Available in single and double acting versions
- Special rod wiper seal protects internal clamp components
- Unique drainage system channels contaminants away from clamp
- Heat treated, chrome plated piston rod
- Unique "Live roller®" swing mechanism for increased service life
- Power-Tech™ treated body and hardened cam for long wear and corrosion resistance
- Clamping arms are adjustable anywhere within a full 360 degrees
- Straight pull capacity 3,144 lbs. at 5,000 psi.
Order No. | Oper. | Swing Direction | Force * (lbs.) |
Eff. Area (sq. in.) |
Oil Cap. (cu. in.) |
||
Clamp | Unclamp | Clamp | Unclamp | ||||
100849 | Single-Acting |
RH (Clockwise) | 2,400 | 0.630 | 1.230 | 0.740 | 1.460 |
* With 2.00" arm at 5,000 psi maximum operating pressure. |

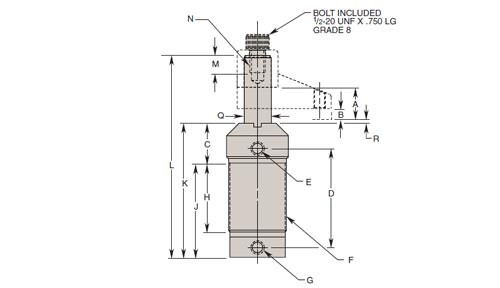

Order No. | Dimensions (In Inches) | ||||||||||||||
A Total Stroke |
B Clamping Strokes |
C | D |
E Clamp Port |
F |
G |
H | J | K | L | M |
N Thread Size |
Q † Dia. |
R | |
100849 | 1.938 | 1.250 | 1.252 | 4.688 | 1/8 NPTF | 1 7/8-16 UN | 1/8 NPTF | 3.740 | 4.562 | 5.812 | 8.810 | 0.550 | 1/2-20 UNF | 0.875 | 0.061 |
Product Availability | Intermittent stocking item, call for specific ship date. Please note, we go into production on some items as soon as we receive your order. It is highly recommended that you place your order as soon as possible. |
---|---|
Manufacturer | SPX Hytec |
